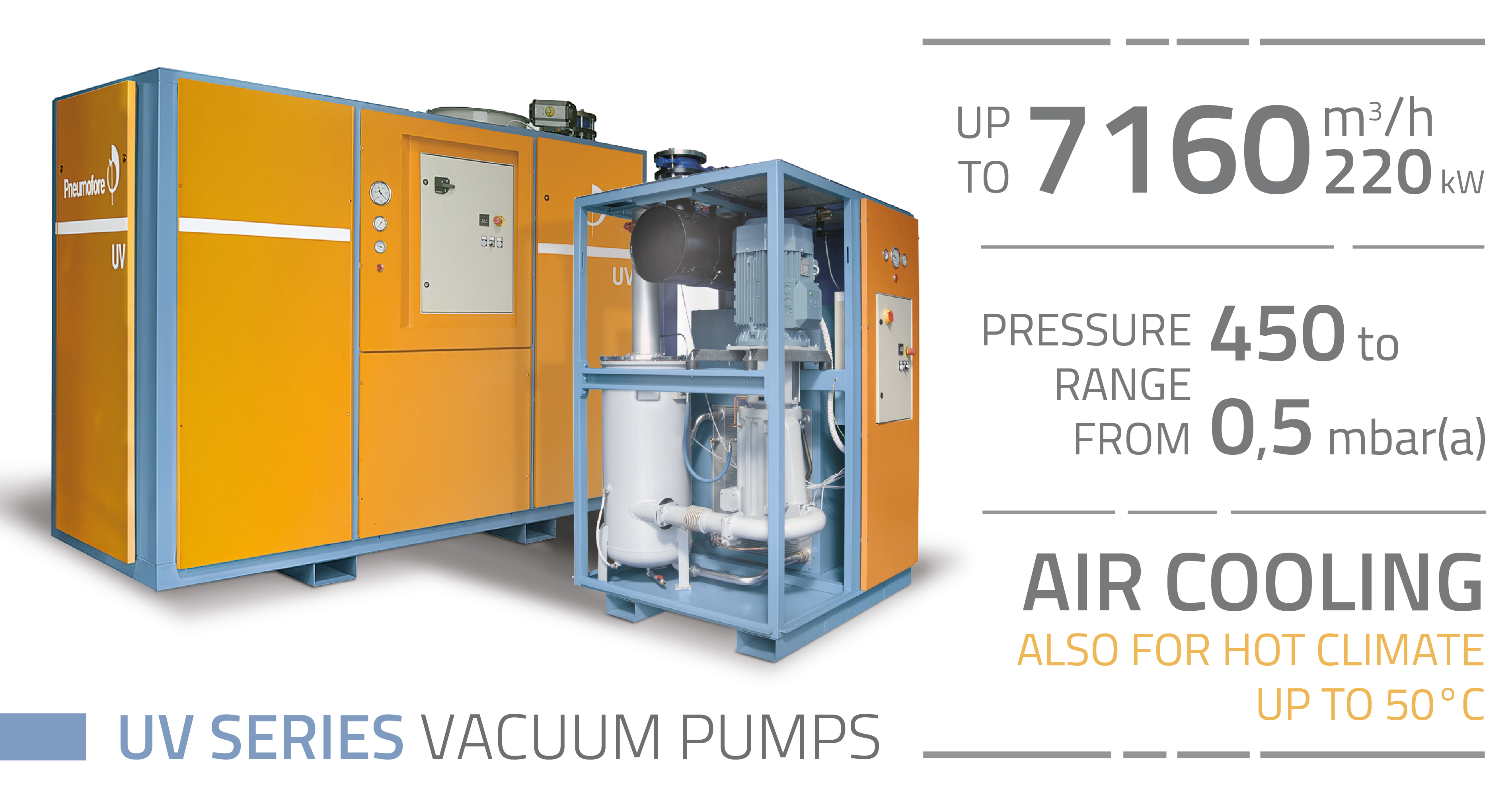

UV SERIES Vacuum Pumps
UV SERIES
Vacuum Pumps
Air-cooled
Single-stage
Rotary Vane
Vacuum Pumps

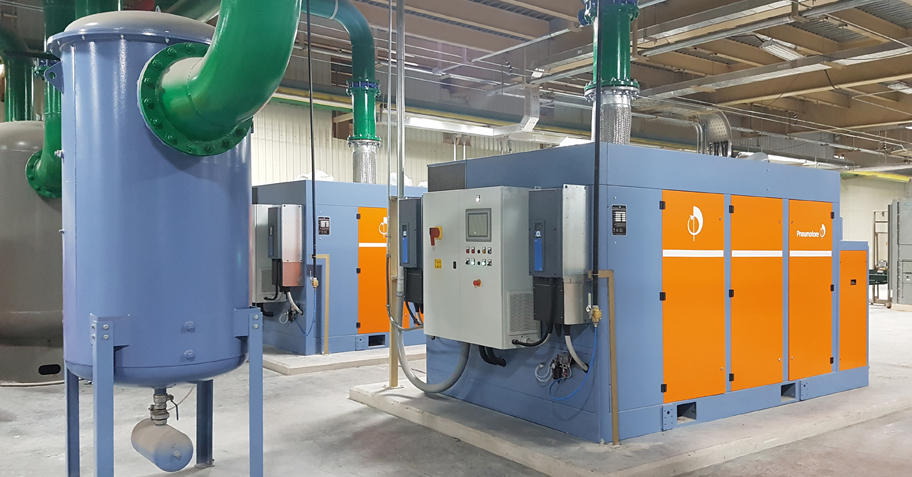

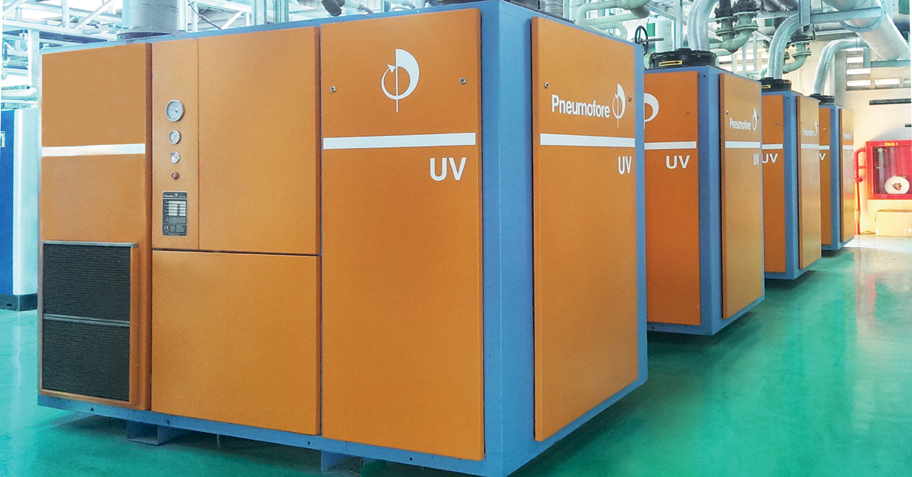

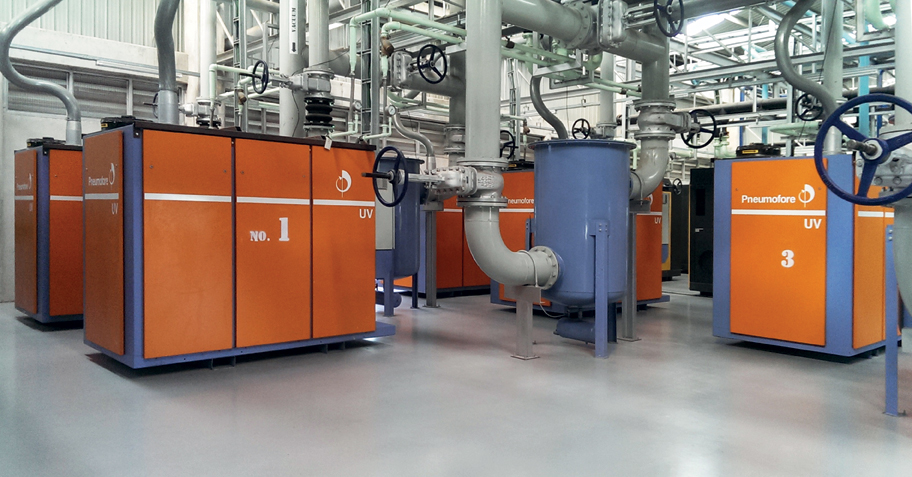

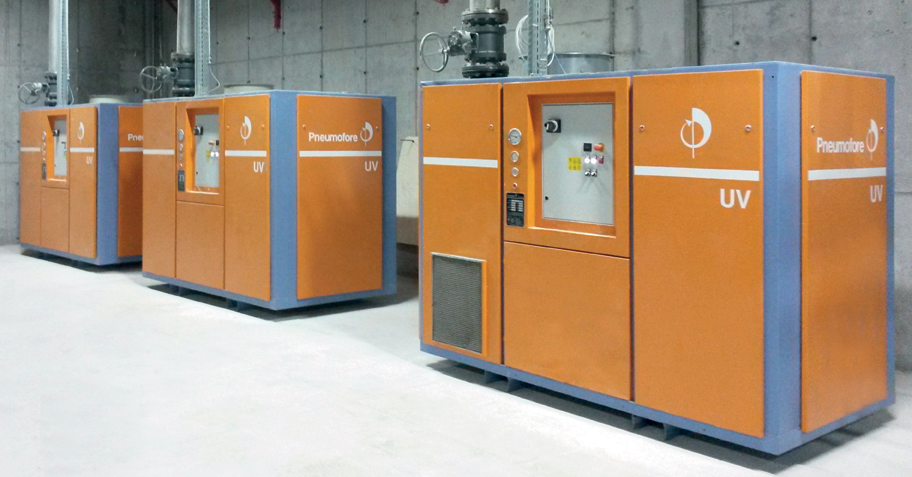

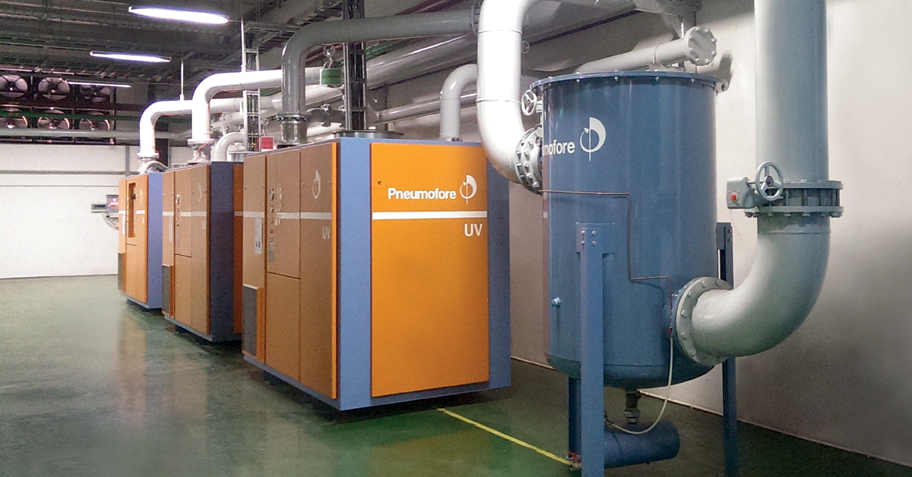

Pneumofore’s legendary UV Series models currently installed in industrial plants worldwide evacuate a monstruous billion+ m3 each year.
And not only more reliably, but also more efficiently than any other vacuum pump. These pumps cover a wide vacuum range and offer single stage 250 to 7.160 m3/h [148 to 4.211 cfm] with the residual pressure of 0,5 to 450 mbar(a) [29,90 to 16,62 inHg V]. Capacity and residual pressure are extended with multiple stage machines. The family of UV pumps includes several versions, described below, for a wide variety of applications.
Suction volumes from 250 m3/h to 7.160 m3/h (Single stage). 99,95% maximum vacuum degree [0,5 mbar(a) residual absolute pressure] with performance curves constant up to 95%.
Reduced electric energy consumption when compared to liquid ring pumps with same nominal capacity. Up to 70% savings on replacements.

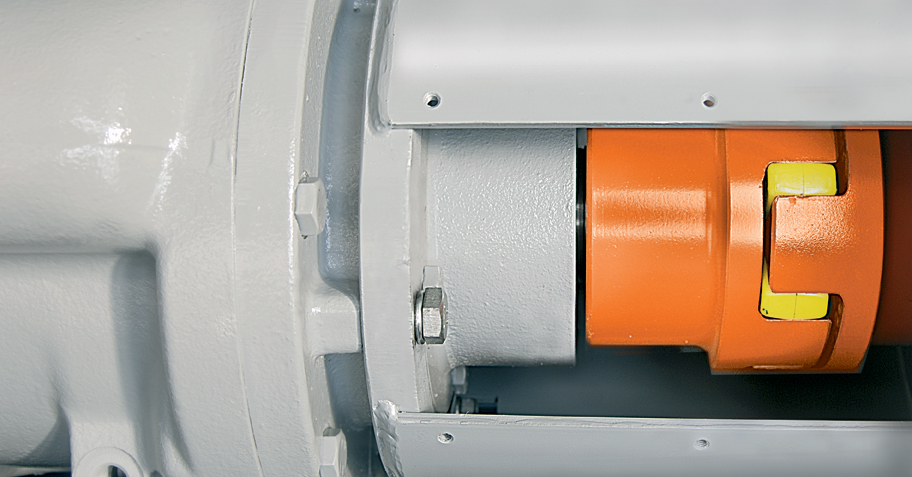

“Plug and play” pumps, easy to install and integrate.
Air cooling through an aluminium radiator and a temperature controlled fan. Water-free cooling prevents problems related to limestone, ambient temperature and unstable vacuum degree.

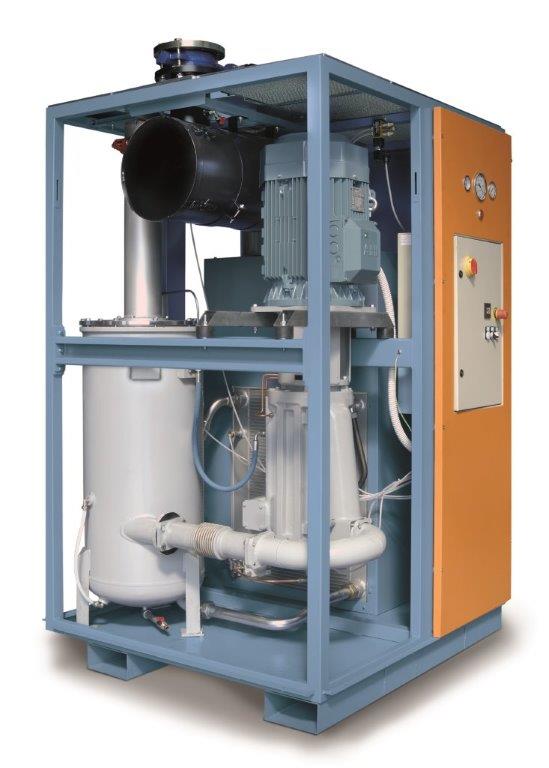

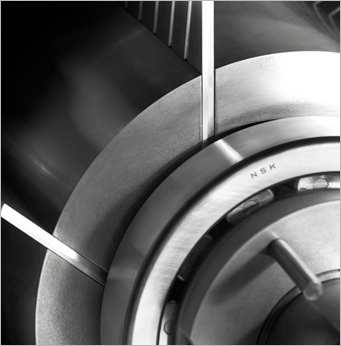

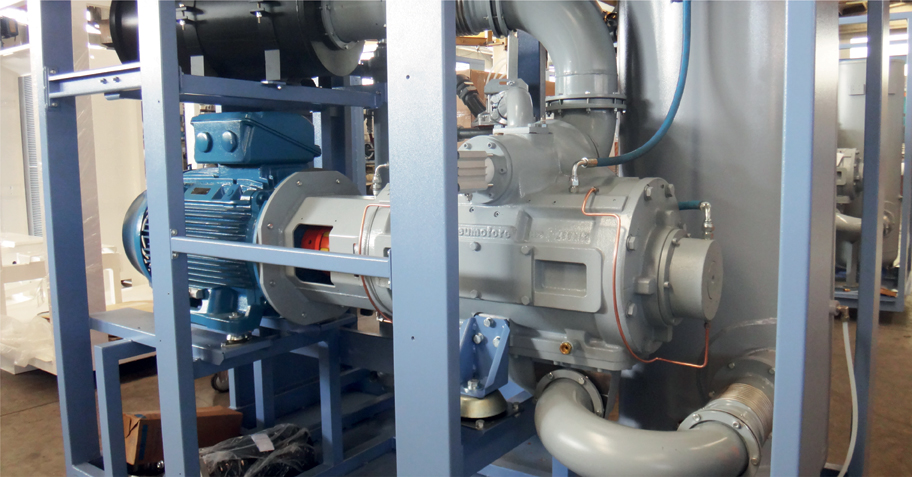

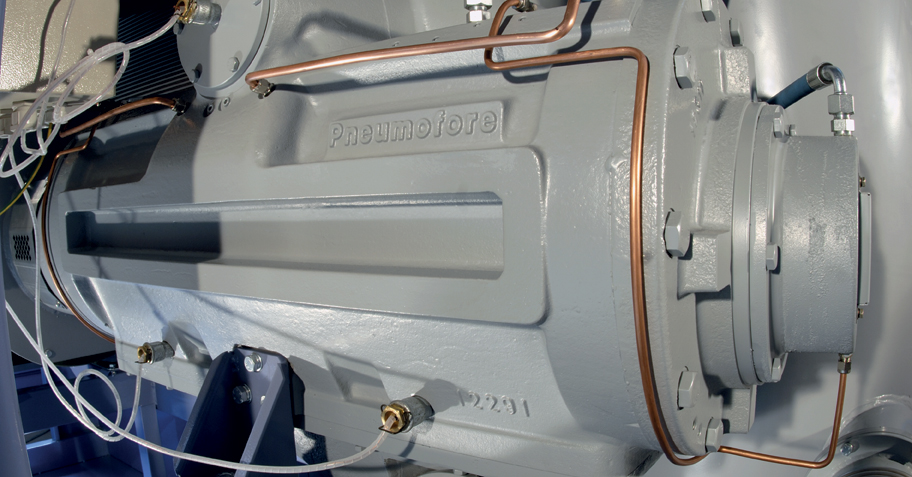

Special aluminum alloy vanes provide active sealing, avoiding efficiency loss and minimizing cost of operation and maintenance.
“Closed-loop” lubrication circuit ensures negligible coolant consumption.
TECHNICAL DATA
Select a model
Select a model and swipe to the left for more data
Metric Units
|
Pressure Range
|
Capacity
|
Nominal Power
|
Absorbed Power*
|
Dimensions
|
Noise
|
Weight
|
||||
|
50 Hz
|
60 Hz
|
50 Hz
|
60 Hz
|
50 Hz
|
60 Hz
|
L x W x H
|
50 Hz
|
60 Hz
|
kg
|
|
|
mbar(a)
|
m3/h
|
kW
|
kW
|
mm
|
db(A)
|
|||||
| 100 | 5.389 | 6.359 | 180 | 180 | 96,6 | 126,8 |
4.700
2.100
2.260
|
78 | 79 | 6.850 |
| 200 | 5.546 | 6.544 | 180 | 180 | 106,0 | 140,5 |
4.700
2.100
2.260
|
78 | 79 | 6.850 |
| 300 | 5.552 | 6.552 | 180 | 180 | 117,0 | 152,1 |
4.700
2.100
2.260
|
78 | 79 | 6.850 |
